Gear Cutting End Mill for Stainless Steel , 2 / 4 Flute End Mill

Dongguan Diamond Hardware Factory
Contact Now

Gear Cutting End Mill for Stainless Steel , 2 / 4 Flute End Mill

Brand Name : JT

Model Number : JTR2

Place of Origin : China

MOQ : 20pcs

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 200,000pcs per month

Delivery Time : 5 working days after received your payment

Packaging Details : Each products packed with bubble and then Putted in carton firstly,finally reinforced with wooden case for outer packing

Product Name : Micro Diameter Ball Nose End Mill With 55 / 60 / 65 Hardness

Diameter : R0.1-0.4 mm

Hardness : 55/60/65 Degree

Overall length : 50mm

Material : Micro Grain Carbide

Performance : Stable,Long life span

Flute : 2 or 4

Coating : TiAlN,TiCN TiN and ARCO

Application : Stainless Steel/Slotting/Milling/Roughing To Finishing

Customizable : Yes

Contact Now

Gear Cutting End Mill for Stainless Steel , 2 / 4 Flute End Mill



 Description


- Our carbide end mills are made by 5 Axi grainding machine with high toughness & high wearing precision.
- Our carbide end mills have long usage life lasting in hardened steels.
- Every product will inspected by Zoller Machine.



We use 100%  original raw material, the micro grain tungsten carbide powder and cobalt powder(from German)to make the carbide rod, hardness can be 92.5-94.0(HRA), and T.R.S. is 4200-4800(N/mm2), this carbide rod can ensure the end mills with very strong abrasive resistance and impact strength.



Original raw micro grain material, high hardness and T.R.S.



   1, Co: 10-12%, WC: 88-90%,

        Grain size: 0.2-0.6μm,

        Hardness: 92.5-94.0 HRA,

        T.R.S.: 4200-4800 N/mm2,

        Density: 14.3-14.8 G/cm3



   2, We got 250T Extruder, 10MPa Overpressure Sintering Furnace-Vacuum

       Dewaxing, these two equipments are very very important for manufacture and high quality carbide rods.



   3, We use our own carbide rod for 90% of cutting tools.



   4, We have introduced advanced CNC grinding machines in operating,Rollomatic,Schneeberger from Switzerland, ANCA from Australia, Zoller from German,KEYENCE from Japan,set  up(Japan FANUC, brother processing center) tool laboratory   test cut.Our technology from Taiwan. Guarantee high precision and good performance.



   5, Helix Angle: 38-42 °(we could do 4 of them are 37°)

         Diameter of cutting edge: 1-20mm

         Diameter of rods: 4-20mm

         Length: 50-150mm

         Cutting Form: Ball nose, Corner Radius, Taper Flute, etc.

         Flutes No.: 2-4





 Super coating



     TiAN,TiCN TiN  and  ARCO ,

     improve tool life, reduce the coefficient of friction.





 Applications



    Copper, Cast Iron, Carbon steel, Tool steel,

    Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.





 Price Performance Ratio



   From tungsten powder to end mills, that's the reason of our competitiveness!

   Make sure about each piece end mill has a good quality,high precision and good performance.

   More discount will be offered according to exact quantity.

   Welcome to be our agents, OEM is also available.





Specifications:



Model NO.

Diameter/D1

Flute Length/L1

O.A.L/L3

Shank Dia/D2

JTR2002

R0.1

0.4

50

4

JTR2003

R0.15

0.6

50

4

JTR2004

R0.2

0.8

50

4

JTR2005

R0.25

1.0

50

4

JTR2006

R0.3

1.2

50

4

JTR2008

R0.4

1.6

50

4





 Products display

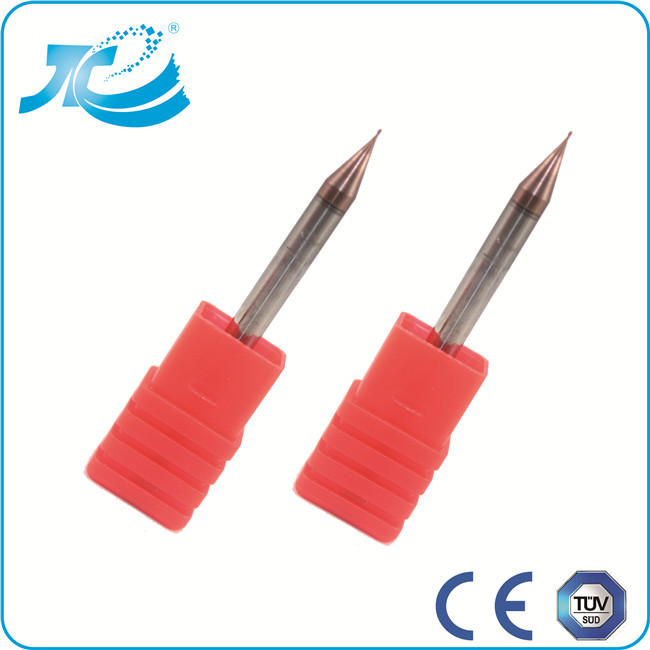

Gear Cutting End Mill for Stainless Steel , 2 / 4 Flute End MillGear Cutting End Mill for Stainless Steel , 2 / 4 Flute End MillGear Cutting End Mill for Stainless Steel , 2 / 4 Flute End Mill
