Straight Collect DCM25 - 090 BT40 Tool Holder Milling Machine Collet Chuck
Product Description:
Model No.: BT40-DCM25-090
Collet Type:SC25
Fit:Generic
Hardness: 56-58 HRC
Material: JIS SNCM220
Use on milling and drilling
Taper tolerance:<AT3
Carbon depth: <0.8mm
Surface Roughness: Ra<0.005mm
Max run out: <0.005mm
Shank body standard: MAS 403 and B6339
Pre-balanced by design (8000rpm/G6.3), Through tool holder coolant capability
Fine balancing can be customed on demand (12000rpm/G6.3 , 30000rmp/G2.5)
With through hole for internal and flange coolant (AD/B) design can be customed on demand
USE:
For clamping tools with cylindrical shank in Collets according to DIN 6499
Included in delivery: Clamping nut.
Please guarantee that the clamping the tool hangs extends is short
Product Advantage :
Good Surface finish , Increased feed rate
Layers with high heat resistance , can be high-speed processing
Grain size carbon tungsten has high toughness, ALTIN coating , high wear-resistance , special use for high speed cutting of CNC milling machine , also can increase the smoothness , reduce the rubbing coefficient m and improve the lathe efficiency m save more production time
Tool Rigidity and good chip discharge , the most suitable for high-precision three- dimensional mold machining.
Factory dvantage:
More than five years production experence
Have more than 20 sets of CNC machine center
Large in stock qty
Made from 100% virgin raw material
Everyone goods go through strict quality inspection
Specifications:
| Model No. | Clamping Range | d | D | L | Collect Type | Weight (Kg) |
| BT30-DCM25-085 | 6-25 | 25 | 58 | 85 | SC25 | 1.30 |
| BT40-DCM25-090 | 6-25 | 25 | 58 | 90 | SC25 | 1.90 |
| BT40-DCM25-130 | 6-25 | 25 | 58 | 130 | SC25 | 2.70 |
| BT40-DCM32-095 | 6-32 | 32 | 68 | 95 | SC32 | 2.20 |
| BT40-DCM32-105 | 6-32 | 32 | 68 | 105 | SC32 | 2.80 |
| BT40-DCM32-130 | 6-32 | 32 | 68 | 130 | SC32 | 3.30 |
| BT50-DCM25-100 | 6-25 | 25 | 58 | 100 | SC25 | 4.60 |
| BT50-DCM25-150 | 6-25 | 25 | 58 | 150 | SC25 | 5.50 |
| BT50-DCM32-105 | 6-32 | 32 | 76 | 105 | SC32 | 5.20 |
| BT50-DCM32-150 | 6-32 | 32 | 76 | 150 | SC32 | 6.40 |
| BT50-DCM32-200 | 6-32 | 32 | 76 | 200 | SC32 | 8.50 |
| BT50-DCM32-250 | 6-32 | 32 | 76 | 250 | SC32 | 9.70 |
| BT50-DCM42-110 | 6-42 | 42 | 84 | 110 | SC42 | 5.50 |
| BT50-DCM42-160 | 6-42 | 42 | 84 | 160 | SC42 | 7.60 |
| Unit:mm |

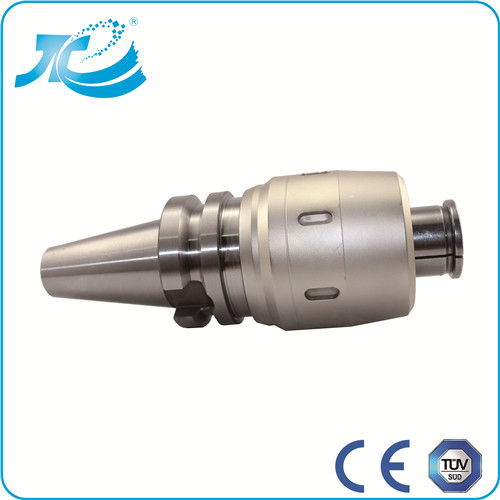

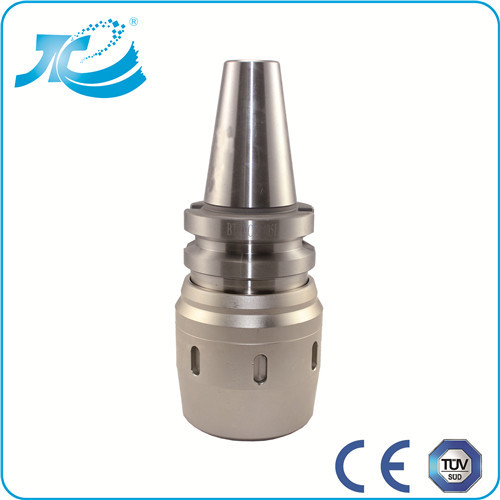

Products display:
